The Aivia 200TA case can be fixed inside and outside a building. The case consists of two separate parts and combines durability with low weight.
Ventilation inside the case prevents excessively high temperatures, but it is not a cooler. The AIVIA 200 should be placed in the shade to prevent the temperature from rising too high in direct sunlight.
The AED compartment is equipped with day/night lighting.
An audible alarm (70-105 dB) sounds when the lid open is forced.
A heater, coupled with a thermometer, keeps the AED frost-free. The thermometer starts the heater in the cabinet as soon as minimum values are reached.
Dimensions: H = 423 mm, W = 388 m, D = 201 mm, weight = 3.5 kg

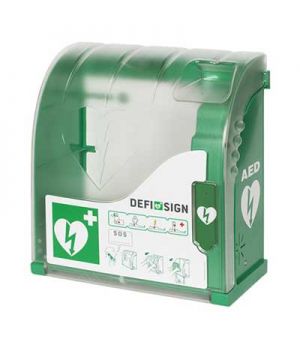

Aivia 200TA Outdoor case Alarmed-Heated-Ventilated
€490.00
VAT excluded
The Aivia 200TA case can be fixed inside and outside a building. The case consists of two separate parts and combines durability with low weight.
Ventilation inside the case prevents excessively high temperatures, but it is not a cooler. The AIVIA 200 should be placed in the shade to prevent the temperature from rising too high in direct sunlight.
The AED compartment is equipped with day/night lighting.
An audible alarm (70-105 dB) sounds when the lid open is forced.
A heater, coupled with a thermometer, keeps the AED frost-free. The thermometer starts the heater in the cabinet as soon as minimum values are reached.
Dimensions: H = 423 mm, W = 388 m, D = 201 mm, weight = 3.5 kg
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
You might also like

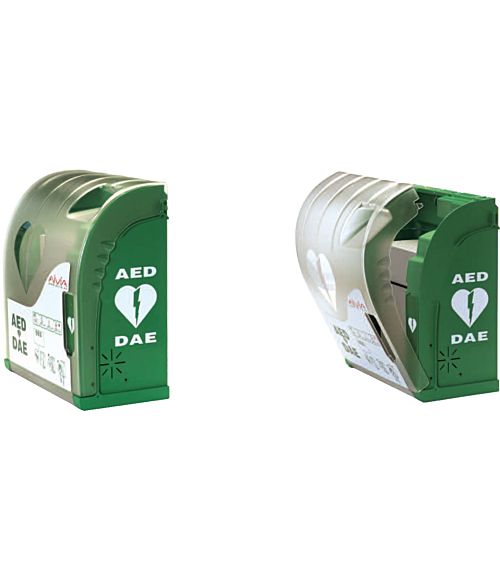

Mainly intended for outdoor use, the AIVIA 200TA is a wall-mounted heated cabinet, with alarm and LEDs, for holding publicly accessible defibrillators, compatible with any type of AED.
The cabinet, sturdy, lightweight and with a modern design, consists of two parts
- a transparent polycarbonate lid with anti-UV treatment and
- a green ABS holder that complies with international standard ISO 3864. norms for first aid colour codes.
These materials are recognised in industry for their excellent mechanical resistance to impact.
The AIVIA 200 case is IKio. certified for excellent impact resistance.
Heating and ventilation are activated by a thermal sensor programmed to start at certain temperatures. The heating system maintains above-zero temperatures in the cabinet by protecting the AED when outside temperatures drop to -20 °C.
The ventilation system allows heat to escape from the cabinet housing the AED when outside temperatures are high.
Red LED indicators automatically signal an anomaly when the detected temperatures exceed the prescribed limits.
The AIVIA 200TA is a freely opening, sealed cabinet. This makes the AED available to the public for first aid intervention.
Opening the lid of the AIVIA 200TA cabinet causes the flashing red LEDs and the audible alarm (103dB) to switch on automatically.
In the event of low external brightness, the AIVIA 200TA has its own automatic lighting triggered by the twilight sensor to be more easily located.
For safety reasons, the device has a 24 V direct current power supply.
This design feature allows the AIVIA 200TA to be placed outside buildings . The perfectly airtight cabinet effectively protects against dust, rain, cold, rust, heat, humidity and mould growth.
The AIVIA 200TA can be wall-mounted or fixed to dedicated pedestals and totems.
Features:
Wall or totem mounting possible
Internal LED lighting via special light sensor
Visual alarm thanks to a red LED presence which is activated when the door is opened
100 dB audible alarm with battery power supply (4 torch batteries supplied)
The temperatures are controlled by the integrated temperature sensor that starts heating in cold weather or cooling via the fan in high temperatures.
IP54 certified for a high degree of impermeability
Power supply via supplied transformer
Weight: 4 kg
2 years Warranty
In the package you will find:
Aivia 200TA outdoor enclosure
Transformer
