The Transparent Red ROTAID SOLID PLUS HEAT-R Alarmed and Heated for Outdoor is a wall-mountable or totem-mounted defibrillator case, it's solid and durable.
This model is suitable for placing the defibrillator in outdoor environments.
The customised heating system ensures that the AED remains within its operating temperature range during frost down to -20°C.
8 LED lights ensure that the cabinet can be found quickly in the dark.
The entire system functions fully automatically and comes with easy installation.
SIZES: - Length: 48 cm - Width: 48 cm - Depth: 18 cm - Weight: 6.7 kg
Fixing materials included
Transparent Red ROTAID SOLID PLUS HEAT-R Alarmed and Heated for Outdoor
€595.00
VAT excluded
The Transparent Red ROTAID SOLID PLUS HEAT-R Alarmed and Heated for Outdoor is a wall-mountable or totem-mounted defibrillator case, it's solid and durable.
This model is suitable for placing the defibrillator in outdoor environments.
The customised heating system ensures that the AED remains within its operating temperature range during frost down to -20°C.
8 LED lights ensure that the cabinet can be found quickly in the dark.
The entire system functions fully automatically and comes with easy installation.
SIZES: - Length: 48 cm - Width: 48 cm - Depth: 18 cm - Weight: 6.7 kg
Fixing materials included
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
You might also like
The Rotaid Solid Plus HEAT-R is a very solid and durable wall-mounted AED locker that allows for recognisable, solid and secure storage of the AED device.
Its characteristics round shape and design make it easy to locate and a simple unscrewing allows access to the AED device.
The AED logo and directional arrows are applied to the device, leaving no room for interpretation.
The cabinet opens with an intuitive unscrewing process that removes the entire lid.
This movement gives full access to the AED device, which is hung on a bracket for quick and easy grasping.
The lid is attached to a back plate by a strap and does not have to be moved by the operator.
The stainless steel hook at the bottom of the cabinet can support a seal, label or other accessories.
The lid, equipped with recesses for optimal grip and directional arrows, is made entirely of polycarbonate.
With a thickness of 5 millimetres, it offers solid protection and a high degree of water and dust resistance.
In addition, the cover is equipped with UV filters to ensure long-lasting transparency.
Device decay, rusting and residue build-up are excluded.
The customised heating system ensures that the AED remains within its operating temperature range during frost down to -20°C.
8 LED lights ensure that the cabinet can be found quickly in the dark.
The entire system functions fully automatically and comes with easy installation.
The ROTAID DAE cabinet heater - PTC is a self-limiting cabinet heater with integrated 24V temperature controller based on a 230/ 110 Volt transformer for safe operation and easy connection.
This heater is based on solid heating technology with a proven track record in the automotive industry.
The heating circuit is not entirely based on a continuous circuit.
The heater consists of several hundred PTC-bonded heating elements that guarantee long-lasting performance even with damaged circuits.
ROTAID SOLID PLUS HEAT-R SPECIFICATION SHEET
APPLICATION: for indoor and outdoor use*.
SIZES: Length 48 cm / 18.90" Width 48 cm / 18.90" Depth 18 cm / 7.1" Weight 6.7 kg / 14.77 lb

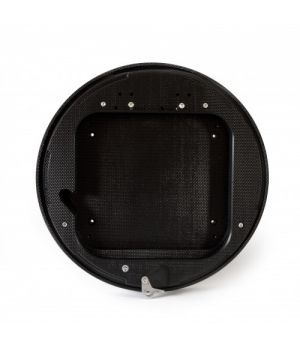

REAR PLATE: 100% recycled HDPE (high density polyethylene), 3 individual plates, satin finish.
A rubber gasket provides protection from dust and water.
Pre-drilled mounting holes at the top of the back plate for 2 DIN 912 8.8 EV M6x80 bolts (included) for optimal defibrillator positioning.
Solid steel hook at bottom for installation of a warranty seal, instructions and other accessories.
4 recessed mounting positions for solid attachment. 4 screws DIN 7981 A2 5.5 x 60m and 4 rings DIN 9021
A2 M6x18x1,6 mm are included for installation on all walls.
LID: 100% recycled polycarbonate, 5mm thick, fully transparent, equipped with UV filters for long-lasting transparency and UV blocking.
A nylon strap is attached to the lid and connected to the back plate. The nylon strap is 40 cm long and 5 cm thick and fitted with brass rings.
4 directional arrows provide help in opening the device.
6 recesses facilitate gripping for quick and firm opening.
Available colours: green.
ALARM SYSTEM: Adjustable volume settings: 84 dBa and 98 dBa *.
Pre-installed ABS case
Powered by 2 AA batteries.
The alarm is triggered by a low coin magnet mounted in the cover.
The alarm can be paused by a red button.
* Measured at 1 metre from the speaker
THERMOSTAT:
MaMaximum temperature 70 (158)
element °C, (°F)
Minimum temperature -50 (-58)
element °C, (°F)
Resistance tolerance ± 20%
Nominal voltage 230
Power
Approvals/standards NEMKO-CE (IEC 60335-1)
Other Possible substrates: PET
Adhesive backing Yes
Connection cable 3 metres
Thermostatic control Yes
THERMOSTAT CONTROL FUNCTION
> 10 C° Off
10-7 C° Maximum 50 % of the time with power increasing by 5 % every 10 seconds
7-2 C° Maximum 100 % of the time with power increasing by 5 % every 10 seconds
< 2 C° 100 % power
POWER SUPPLY: 24 VDC
Power supply DC24V - 5000mA
Input AC 100 ~240V 50/60Hz
Cable length 1.2 m
Output DC 24 V± 5%
Maximum output current 5000mA - 120W
Connection Straight CC connector
Cable length 1.8 m
PACKAGING: White box, FEFCO 0201, conforms to FSC requirements.
Box sizes: 50 x 50 x 25 centimetres / 19.7 x 19.7 x 9.8 inches.
