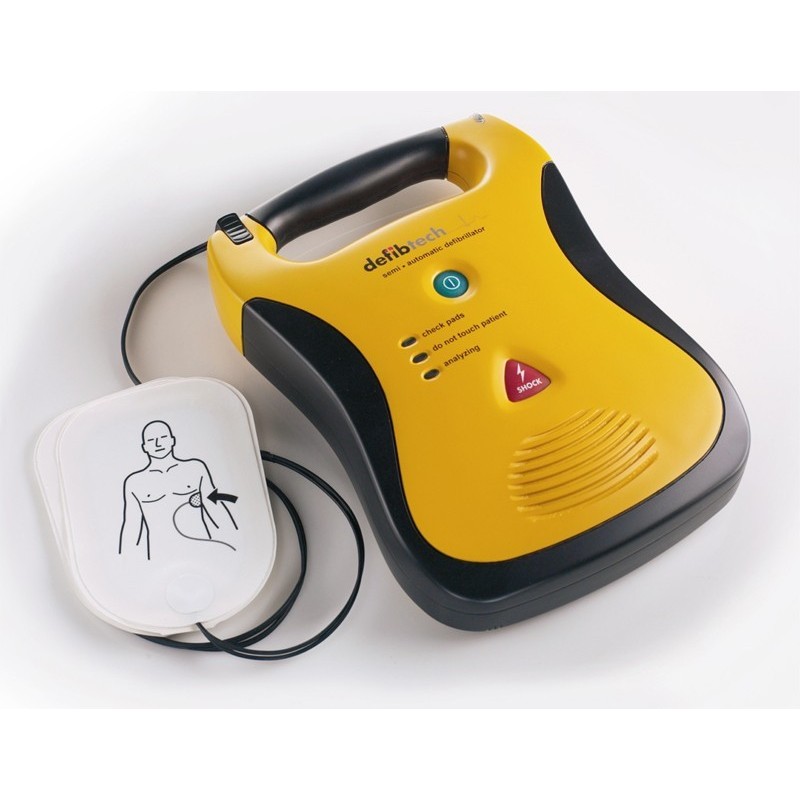

Easy to use. There are only two buttons on the unit. A green one for turning the defibrillator on and a red button for giving a shock to the patient, and for taking the heart rates back to normal values.

 Clear Voice Prompt. A calm clear voice guides ther user, concisely suggesting every instructions, step by step. Progressive lights provide guidance via visual text for enhance the vocal instructions.

  A 5 years long battery life, unique in the sector, capable of delivering 200 shocks or working 16 hours non-stop

 Designed for the real world. Lightweight, fully integrated design without cover or moving parts that can mislead and slow the rescue operation; it has a large handle big enough for the gloves too. The rubber surface ensure a safe grip in case of emergency.

Sturding and lasting. Hugely durable; constructed to withstand dust and water seepage; tested for military standars, impacts and vibrations; jet planes and helicopters.

 Highly visible. Its yellow colour makes the defibrillator easy to detect and enforce. Keeep in mind: "Time is essential for the rescue”.

Easy to update. It can be easily updated by inserting the data card at the change of security procedure.

Technical Specifications

Type

Semi-automatic external defibrillator

Model

DDU-100E

DBP-2400 Battery

Waveform

Biphasic Truncated Exponential

(Impedance compensated)

Energy

Adult: 150 Joules

Child / Infant: 50 Joules

(Nominal into 50 Ohm load)

Charge Time*

4 seconds or less (from shock advised)

Voice Prompts

Extensive voice prompts guide user through operation of the unit

CPR Pacing

Metronome

Controls

Lighted On / Off button

Lighted Shock button

Indicators

"check pads"

"do not touch patient"

"analyzing"

"AED Status LED"

Rescue Protocol

AHA / ERC (default); supports protocol updates

Patient Analysis

Automatically evaluates patient impedance for proper pad contact

Monitors signal quality and analyzes patient ECG for shockable / non‑shockable rhythms

Sensitivity / Specificity

Meets or exceeds IEC-60601-2-4 requirements; meets AAMI DF80 requirements and AHA recommendations

Automatic

Automatic daily, weekly, monthly and quarterly circuitry tests

Battery Insertion

System integrity test on battery insertion

Pad Presence

Pads preconnected tested daily

User-Initiated

Unit and battery pack system test initiated by the user

Status Screen

Visual and audible indication of unit status

Type

Pre-connected, single-use, non-polarized, disposable, self-adhesive electrodes with cable and connector

Internal Event Record

Critical ECG segments and rescue event parameters are recorded and can be downloaded to a removable data card

PC-Based Event Review

ECG with event tag display, and audio playback when available

Removable Storage

(optional) Up to 12 hours of ECG and event data storage (no audio option) or up to 1 hour and 40 minutes of audio (audio option)

ECG and event storage on a removable data card. Actual length of storage is dependent on card capacity

Temperature

Operating: 0 to 50°C (32 to 122°F)

One Hour Operating Temperature

Limit (extreme cold): –20°C (–4°F)***

Standby: 0 to 50°C (32 to 122°F)

Relative Humidity

Operating / Standby: 5%-95% (non-condensing)

Altitude

-500 to 15,000 ft (-150 to 4500 m) per MIL-STD-810F 500.4 Procedure ll

Vibration

Ground (MIL-STD-810F 514.5 Category 20)

Helicopter (RTCA/DO-160D, Section 8.8.2, Cat R. Zone 2, Curve G)

Jet Aircraft (RTCA/DO-160D Section 8, Cat H, Zone 2, Curves B & R)

Shock / Drop Abuse Tolerance

MIL-STD-810F 516.5 Procedure IV

(1 meter, any edge, corner, or surface, in standby mode)

Sealing / Water Resistance

IEC 60529 class IP54;

Dust Protected, Splash Proof (battery pack installed)

ESD

(EN 61000-4-2: (15kV or direct contact up to 8kV)

EMC (Emission)

EN 55011 Class B Group 1 and FCC Part 15

EMC (Immunity)

EN 61000-4-3 (20V/m)

Size

8.5 x 11.8 x 2.7 Inches (22 x 30 x 7 cm)

Weight (Approximate)

With DBP-1400: 4.2 lbs (1.9 kg)

With DBP-2800: 4.4 lbs (2.0 kg)
