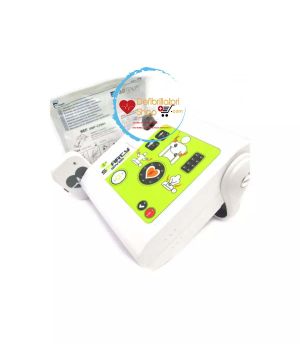

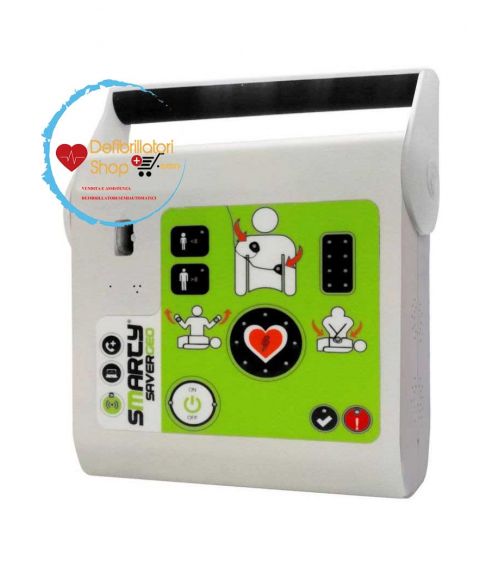

SMARTY SAVER PLUS SM3 Semi-Automatic Defibrillator with "FREE" Wall-Mounted Support

WITHIN EVERYONE'S REACH!

The best portable Automatic External Defibrillator (AED) designed for the rapid and effective treatment of Sudden Cardiac Arrest (SCA) and to provide valuable support during the Cardio Pulmonary Resuscitation (CPR).

The Smarty Saver Plus array is the latest product line of AMI Italia defibrillators; designed to please all the features of a modern AED: designed to be reliable and easy to use for anyone, professionals and non professionals alike.

Its compact and attractive design, is conceived to meet the highest standards of modern defibrillators for public use, Smarty Saver Plus stands out for its lightness and practicality, thanks also to its folding handle that makes it convenient and easy to carry.

An andvanced electronics provides the typical functionality of full-size AEDs, although those of the Smarty Saver Plus are particularly small.

Nothing can guarantee a quick rescue like the immediate accessibility to an AED by a non professionale user; in case of a Sudden Cardiac Arrest the promptness of intervention can save a life!

STANDARD FEATURES: SM3-B1003

Small size (as small as an A4 sheet!)

Practical folding handle

Audio and visual signals

Guidance via voice prompt and metronome

Pre-connected universal electrodes

Defibrillation with BTE two-phase waveform system and shock ≤200J

Q-CPR module external bluetooth detector for CPR quality feedback

The semi-automatic SMARTY SAVER PLUS analyses the patient's ECG and, upon detecting a defilable rhythm, automatically begins charging the capacitor. The AED  will then suggest the operator - with a voice prompt - to press the SHOCK button.

Following the defibrillation, the Cardiopulmonary Resuscitation,  will be guided by voice prompts and the metronome  which  will suggest the compression and insufflation cycles.

Smarty Saver Plus is provided with:

EXTERNAL 'CPR QUALITY' DETECTOR

FEEDBACK LED BAR ON THE RCP QUALITY

Smarty Saver Plus assists the operator in the correct execution of the cardiac massage, during CPR, thanks to the external "CPR Quality" detectror.

The operator can count on real-time support to perform the CPR correctly.

The external "CPR Quality" device is designed to optimise the execution of CPR by providing a simple and accurate feedback to the rescuer, in real time!

When turned on, the "CPR Quality" device will automatically connect to the Smarty Saver Plus AED via Bluetooth and, by arranging it on the patient's chest, it will measure the depth and rate of compressions performed during CPR and send the feedback to the Smarty Saver Plus AED.

The 8 flashing LED bars' on the Smarty Saver Plus AED's keypad will accurately indicate the compression depth; while the acoustic metronome, along with voice prompts, will indicate the correct frequency of compressions and speed of compressions to optimise the CPR.

TECHNICAL CHARACTERISTICS:

DEFIBRILLATOR

Model: Code SM3-B1003: Semi-automatic

Maximum energy: 200J (nominal)

Waveform: Biphasic truncated exponential (BTE) automatically adapts to patient impedance

Discharge protocol: Adult: incremental first discharge 150J - subsequent 200J

Paediatric: fixed 50J

Charging time from the shock warning*: IEC60601-2-4:

≤ 9 sec with shock at 150J

≤ 12 sec with shock at 200J

Loading time from start of analysis*: IEC60601-2-4:

≤ 13 sec with shock at 150J

≤ 16 sec with shock at 200J

Analysis time: IEC/EN 60601-2-4 4 to 15 seconds

Impedance range: 20-200 Ohms

Sensitivity: 97% (IEC/EN 60601-2-4)

Specificity: 99% (IEC/EN 60601-2-4)

Controls: Semi-automatic mode 4 buttons: ON/OFF, shock, patient selector (adult/paediatric)

Light indicators:

- Device status: 2 red/green LEDs

- Positioning of PADs: 2 red LEDs

- Do not touch patient: 2 red LEDs

- Touch the patient: 1 green LED

- Adult patient: 1 green LED

- Paediatric patient: 1 green LED

- ON/OFF button: 2 green LEDs

- Shock button: 8 red LEDs

- CPR quality feedback bar with 8 LEDs: 2 red+2 orange+2 yellow+2 green

- Bluetooth connection with "Q-CPR" module active: 1 green LED

Update: Via USB cable

External memory card

*on a 50 Ohm patient and with a fully charged new battery

STRUCTURE

Sizes: 200x213x71mm (handle closed)

257x213x71mm (handle open)

Weight: 1.56 kg (with battery and PADs)

DATA LOGGING

Optional external memory: Micro uSD/SDHC up to 32GB

Archived data: "AED1LOG.txt": text file Detailed report of self-test and starting activities

"AEDFILE.aed": ECG trace, rescue events, voices, ambient audio

Display/Visualisation

"AEDFILE.aed": Via data management software "Saver View Express".

DEFIBRILLATION PADS

Type: Code SMT-C2001: disposable, universal, pre-connected

Sizes: Total surface area 136cm2; Active surface area 94cm2;

Cable length 120cm (outside packaging)

Shelf-life: 24-30 months, as stated on the packaging

BATTERY

Type: Code SMT-C14031

8-cell Li-MnO2 disposable battery,

Voltage/capacity: 12VDC-3000mAh

Autonomy: Up to 200 complete rescue cycles (shock at 200J + CPR);

Up to 36 hours continuous ECG analysis*.

Stand-by life: Up to 3 years with one battery insertion test and daily self-test without any AED switch-on*

*performance based on new batteries stored at 20°C

and 45% relative humidity without condensation

ENVIRONMENTAL SPECIFICATIONS

Operating temperature: 0°C to 45°C (32°F to 113°F)

Storage and shipping temperature: -40°C to 70°C (-40°F to 158°F)

Humidity: 10% to 95% relative humidity without condensation

Sealing (IP): IEC/EN 60529: IP56 class

Mechanical resistance: IEC/EN 60601-1 clause 21

Electrostatic discharges: IEC/EN 61000-4-2

Electromagnetic Compatibility: IEC/EN 60601-1-2:2015

Defibrillation Protection: IEC/EN 60601-1; internally powered equipment, Type BF

Classification: Directive 93/42/EEC

Amd 2007/47/EC: Class IIb, Annex IX Rule 9

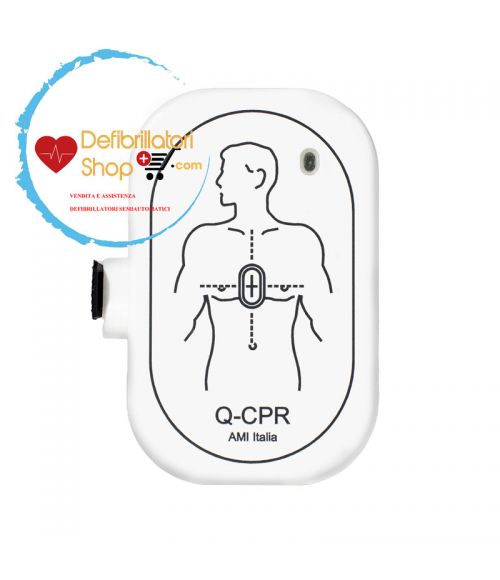

Q-CPR EXTERNAL MODULE

Description: Code SMT-C14034:

External q-cpr support module associated with AED via Bluetooth; Class I

Weight and sizes: 95 x 60 x 13mm; 50gr

Compression guidance: According to AHA/ERC international guidelines for both adult and paediatric patients

Controls and light icons;

Power key ON/OFF;

Green LED flashing: searching Bluetooth signal

Steady green LED: Bluetooth connection active

Battery:

Code: SMT-C14035

Type Buffer battery LiMnO2

Voltage/capacity 3 VDC / 1Ah

Autonomy up to 2 hours in continuous use

Radio Equipment compliance: Directive 2014/53/EU-RED
